1404R-08-08-.000

Sold as: Each
Ordered as: 1404R-08-08-.000
$6.06

Details

Details

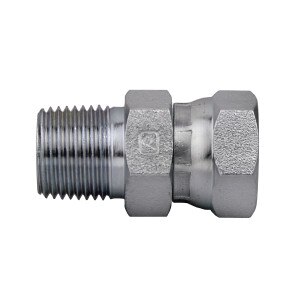

• RESTRICTOR - MP x NPSM Adapter
• MP x FPX RESTRICTOR
• 1st) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/2" Female NPSM Pipe Swivel (1/2 - 14 Thread)
• 3rd) Restricted Orifice 0.000"
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140130 - Restricted Orifice NOT Specified

• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI

Crossover Part Numbers

Eaton-Weatherhead Ref: 9205x8x8x.000
Parker Ref: 0107-8-8-.000

Specs

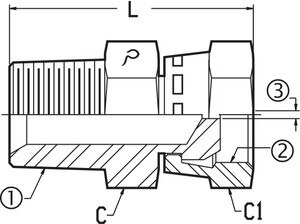

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe1 - Size: -08 (1/2")
1 - Thread: 1/2 - 142 - Thread Type: Female NPSM Swivel2 - Size: -08 (1/2")2 - Thread: 1/2 - 143 - Thread Type: Restricted Orifice3 - Size: 0.00003 - Thread: Blank
C - Hex: 1"C1 - Nut Hex: 1"L - Length: 1.89Working PSI: 3,500Burst PSI: 14,000Working BAR: 241Burst BAR: 965
