1703-32-32-4

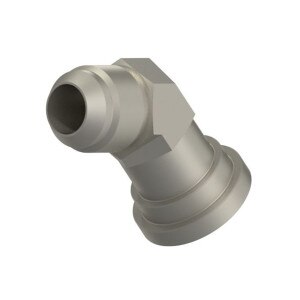

MJ Split Flange Elbow 45° - Code 61 -Stl
Details
Details
• Code 61 - JIC Split Flange Elbow
• MJ x FH61 45°
• 1st) 2" Male 37° JIC Flare (2 1/2 - 12 Thread)
• 2nd) 2" Code 61 Flange Head (2-13/16" Dia.)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 61SF-KIT-32
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
