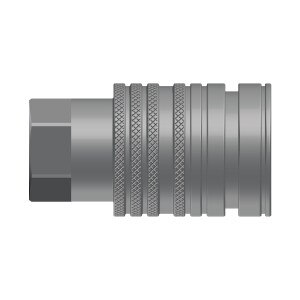

40C-08
Crossover Part Numbers
Dixon Ref.: 4AGF4-PS
Parker Ref.: 4250-4
Specs
Fluid Product: ConnectionProduct Type: Quick CouplersMedia: HydraulicMaterial: SteelOrientation: General Purpose1 - Size: 1/2
2 - Thread Type: Female Pipe2 - Size: 1/22 - Thread: 1/2 - 14A - Length: 2.49B - Diameter: 1.50D - Wrench Flats: 1.06
E - Connected / Exposed: 3.40Working PSI: 3,625Burst PSI: 14,500Working BAR: 250Burst BAR: 1,000
