5407-16
1" MP - Square Head Plug - Steel
Details
Details

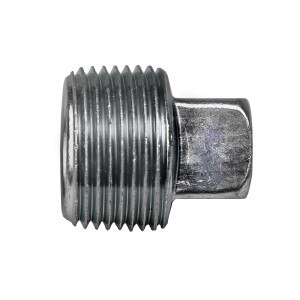

• Square Head Pipe Plug
• MP
• 1st) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J531) 130109A
• Working Pressure 5,500 PSI (4:1 Burst)
• Burst Pressure 22,000 PSI
• MP
• 1st) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J531) 130109A
• Working Pressure 5,500 PSI (4:1 Burst)
• Burst Pressure 22,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF4177-16SEaton-Weatherhead Ref: C3179x16
Parker Ref: 1 SHP-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight

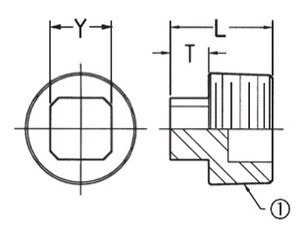

1 - Thread Type: Male Pipe1 - Size: -16 (1")1 - Thread: 1 - 11 1/2L - Length: 1.37T - Thickness: 0.52
Y - Square Head: 1 1/16Working PSI: 5,500Burst PSI: 22,000Working BAR: 379Burst BAR: 1,517
