6400R-06-08-.000

Sold as: Each
Ordered as: 6400R-06-08-.000
$3.12

Details

Details

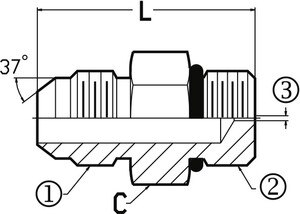

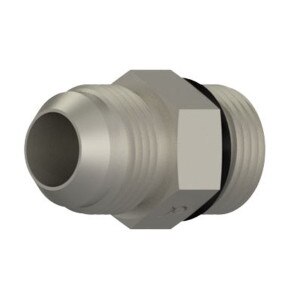

• RESTRICTOR - Straight Thread Connector
• MJ x MB
• 1st) 3/8" Male 37° JIC Flare (9/16 - 18 Thread)
• 2nd) 1/2" Male O-Ring Boss (3/4 - 16 Thread)
• 3rd) Restricted Orifice 0.000"
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070120 - Restricted Orifice NOT Specified

• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI

Crossover Part Numbers

Eaton-Weatherhead Ref: C5315x6x8x.000
Parker Ref: 6-8-.000 F5OX-S

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/8"1 - Thread Type: Male JIC
1 - Size: -06 (3/8")1 - Thread: 9/16 - 182 - Thread Type: Male ORB2 - Size: -08 (1/2")2 - Thread: 3/4 - 163 - Thread Type: Restricted Orifice3 - Size: 0.0000
3 - Thread: BlankC - Hex: 7/8L - Length: 1.38Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
