LLTC-2006-FP

.


Sold as: Each
Ordered as: LLTC-2006-FP

Details

Details

• Legend Series™

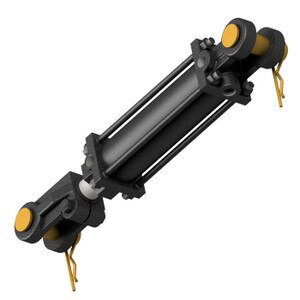

• Double Acting Hydraulic Cylinder
• Tube: Tie-Rod Clevis Construction
• 2" Bore
• 6" Stroke
• 1.125" Rod Diameter: SAE C 1045 Ground & Polished, Hard Chrome Plated
• 3/8" Pipe Ports: 3/8-18 NPTF Threads
• 2,500 PSI Pressure Rating
• Black Painted Finish
• PCC World-Class Quality

Specs

Fluid Product: CylinderProduct Type: Legend Series™Media: HydraulicThread: 3/8 - 18Size: 3/8" NPTF Ports1 - Thread Type: NPTF Pipe Port1 - Size: 3/8" NPTF Ports1 - Thread: 3/8 - 18
2 - Thread Type: NPTF Pipe Port2 - Size: 3/8" NPTF Ports2 - Thread: 3/8 - 18Bore: 2"Cylinder Type: Tie-RodExtended: ________Mount: ClevisRetracted: ________
Rod Diameter: 1-1/8"Stroke: 6"Weight: 17.4Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 690
