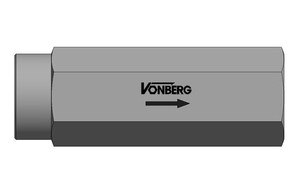

CV-91010-35-12-12 - 5 PSI Crack

Check Valve - FB x FB (Female SAE O-Ring Boss) Ports - In-Line Style - 3 to 5 Crack PSI - Steel
Flow from (1) to (2) is allowed with a standard crack pressure of 3-5 psi
Flow from (2) to (1) is blocked with a spring bias to assist in static and low load conditions
Low Internal Leakage, 5 DPM
Aluminum Body and Steel Poppet
No Internal Packings
Low Pressure Drop
Special Crack PSI Available Upon Request
