1169S-06-04

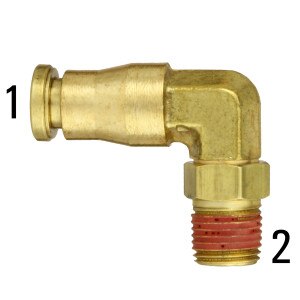

3/8" PTC x 1/4" MPX 90° - Male Elbow Swivel - Push-To-Connect - Brass

$14.02
Sold as: Each
Ordered as: 1169S-06-04
view spec page

Crossover Part Numbers

Parker: W169PL-6-4

Specs

Fluid Product: ConnectionProduct Type: Brass Push-To-ConnectsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: 90° ElbowTube O.D.: 3/8"
1 - Thread Type: Push-To Connect1 - Size: -06 (3/8")1 - Thread: 0.375" I.D.2 - Thread Type: Male Pipe Swivel2 - Size: -04 (1/4")2 - Thread: 1/4 - 18
Working PSI: 250Burst PSI: 1,000Working BAR: 17Burst BAR: 69
