1169SN-04-02-SF

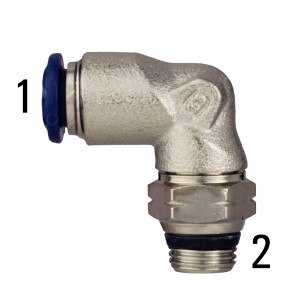

1/4" PTC x 1/8" MPX 90° - Male Elbow Swivel - Push-To-Connect - Nickel Plated Brass

$73.25
Sold as: Packs of 10
Ordered as: 1169SN-04-02-SF
view spec page

Crossover Part Numbers

Eaton-Weatherhead: 1169x4S
Parker: W169PLP-4-2

Specs

Fluid Product: ConnectionProduct Type: Nickel Push-To-ConnectsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: 90° ElbowTube O.D.: 1/4"
1 - Thread Type: Push-To Connect1 - Size: -04 (1/4")1 - Thread: 0.250" I.D.2 - Thread Type: Male Pipe Swivel2 - Size: -02 (1/8")2 - Thread: 1/8 - 27
Working PSI: 290Burst PSI: 1,160Working BAR: 20Burst BAR: 80
