1404-06-04

Sold as: Each
Ordered as: 1404-06-04
$3.57

Details

Details

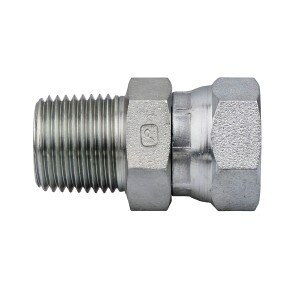

• MP x NPSM Adapter
• MP x FPX
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140130

• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2045-4-6SEaton-Weatherhead Ref: 9205x6x4
Parker Ref: 0107-6-4SAE Ref: 140130

Specs

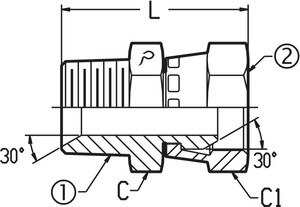

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -06 (3/8")1 - Thread: 3/8 - 182 - Thread Type: Female NPSM Swivel2 - Size: -04 (1/4")2 - Thread: 1/4 - 18C - Hex: 11/16
C1 - Nut Hex: 11/16L - Length: 1.55Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
