15-90107-04-04-06

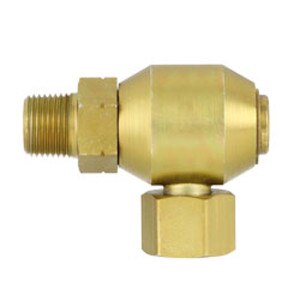

1/4" MP Stem x 1/4" FPX Body x 3/8" Flow - 15 Series - 90° - Steel

$119.90
Sold as: Each
Ordered as: 15-90107-04-04-06
view spec page

Crossover Part Numbers

Hydraulics Inc. Ref.: 9S6PU4-P4

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -04 (1/4")1 - Thread: 1/4 - 182 - Size: -04 (1/4")

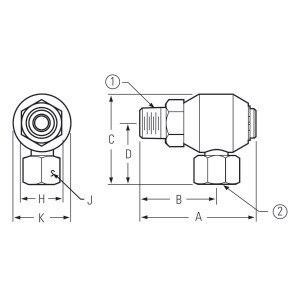

2 - Thread: 1/4 - 18A: 2.50B: 1.65C: 1.89D: 1.27H: 0.87J: 0.75K: 1.25
1-Stem Thread Type: Male Pipe2-Body Thread Type: Female Pipe Swivel3-Flow Size: 3/8Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
