15-90301-08-06-06

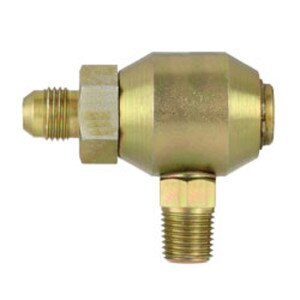

1/2" MJ Stem x 3/8" MP Body x 3/8" Flow - 15 Series - 90° - Steel

$122.55
Sold as: Each
Ordered as: 15-90301-08-06-06
view spec page

Crossover Part Numbers

Hydraulics Inc. Ref.: 9S6P6-J8

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Size: -06 (3/8")

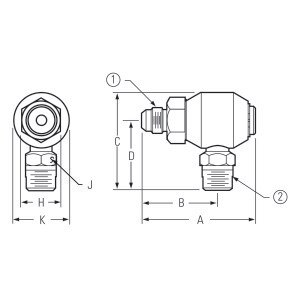

2 - Thread: 3/8 - 18A: 2.50B: 1.65C: 2.12D: 1.50H: 0.87J: 0.75K: 1.25
1-Stem Thread Type: Male 37° JIC Flare2-Body Thread Type: Male Pipe3-Flow Size: 3/8Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
