15-90507-08-08-08

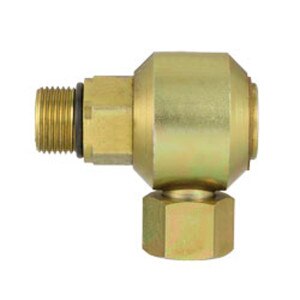

1/2" MB Stem x 1/2" FPX Body x 1/2" Flow - 15 Series - 90° - Steel

$141.30
Sold as: Each
Ordered as: 15-90507-08-08-08
view spec page

Crossover Part Numbers

Hydraulics Inc. Ref.: 9S8PU8-O8

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Size: -08 (1/2")

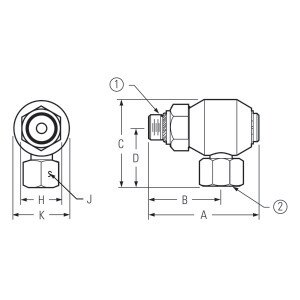

2 - Thread: 1/2 - 14A: 2.58B: 1.74C: 2.26D: 1.51H: 1.00J: 1.00K: 1.50
1-Stem Thread Type: Male O-Ring Boss2-Body Thread Type: Female Pipe Swivel3-Flow Size: 1/2Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
