15-90509-08-08-06

Sold as: Each
Ordered as: 15-90509-08-08-06
$38.98

Crossover Part Numbers

Hydraulics Inc. Ref.: 9S6F8-O8

Specs

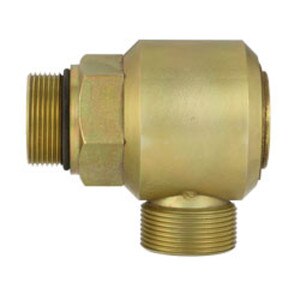

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Size: -08 (1/2")

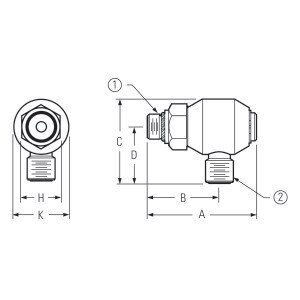

2 - Thread: 13/16 - 16A: 2.50B: 1.65C: 1.88D: 1.26H: 0.87K: 1.251-Stem Thread Type: Male O-Ring Boss
2-Body Thread Type: Male O-Ring Face Seal3-Flow Size: 3/8Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
