15-DP-0103-06-08-06

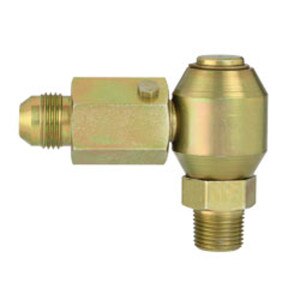

3/8" MP Stem x 1/2" MJ Body x 3/8" Flow - 15 Series - Dual Plane - Steel

$194.20
Sold as: Each
Ordered as: 15-DP-0103-06-08-06
view spec page

Crossover Part Numbers

Hydraulics Inc. Ref.: 9SS6J8-P6

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: Dual Plane1 - Size: -06 (3/8")1 - Thread: 3/8 - 182 - Size: -08 (1/2")

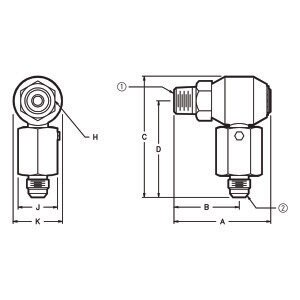

2 - Thread: 3/4 - 16A: 2.50B: 1.65C: 3.22D: 2.59H: 0.37J: 1.00K: 1.25
1-Stem Thread Type: Male Pipe2-Body Thread Type: Male 37° JIC Flare3-Flow Size: 3/8Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
