15-PP-0202-08-08-08

1/2" FP Stem x 1/2" FP Body x 1/2" Flow - 15 Series - Parallel Plane - Steel

$247.98
Sold as: Each
Ordered as: 15-PP-0202-08-08-08
view spec page

Crossover Part Numbers

Hydraulics Inc. Ref.: 18S8PF8-PF8

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: Parallel Plane1 - Size: -08 (1/2")1 - Thread: 1/2 - 142 - Size: -08 (1/2")2 - Thread: 1/2 - 14

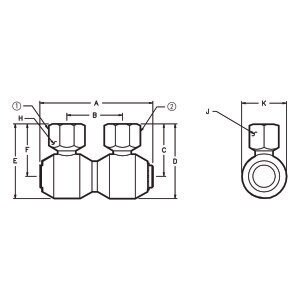

A: 3.03B: 1.49C: 2.59D: 1.84E: 2.59F: 1.84H: 1.00J: 1.00K: 1.50
1-Stem Thread Type: Female Pipe2-Body Thread Type: Female Pipe3-Flow Size: 1/2Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 828
