1501R-06-06-.032

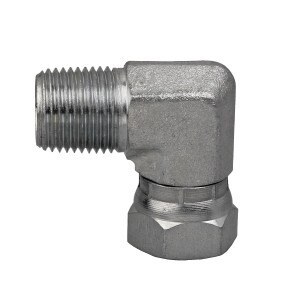

3/8" MP x 3/8" FPX 90° - 0.032" Restrictor - NPSM Elbow - Steel
Details
Details
• RESTRICTOR - MP x NPSM Elbow
• MP x FPX 90° RESTRICTOR
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) Restricted Orifice 0.032"
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140230 - Restricted Orifice NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MP x FPX 90° RESTRICTOR
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) Restricted Orifice 0.032"
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140230 - Restricted Orifice NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Weatherhead Ref: 9405x6x6x.032
Parker Ref: 2107-6-6-.032

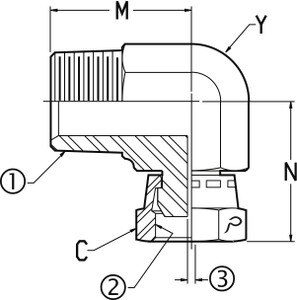

Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male Pipe1 - Size: -06 (3/8")1 - Thread: 3/8 - 18
2 - Thread Type: Female NPSM Swivel2 - Size: -06 (3/8")2 - Thread: 3/8 - 183 - Thread Type: Restricted Orifice3 - Size: 0.03133 - Thread: 1/32C - Nut Hex: 7/8M - Leg Length: 1.19
N - Leg Length: 1.14Y - Flats: 3/4Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
