1502-06-06-4

Sold as: Each
Ordered as: 1502-06-06-4
$6.30

Details

Details

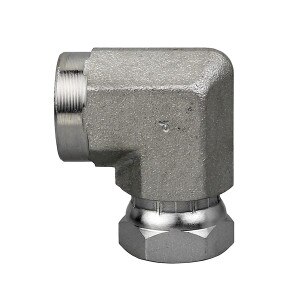

• FP x NPSM Elbow
• FP x FPX 90°
• 1st) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140231

• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2048-6-6SEaton-Weatherhead Ref: 9455x6x6
Parker Ref: 2207-6-6SAE Ref: 140231

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Female Pipe1 - Size: -06 (3/8")

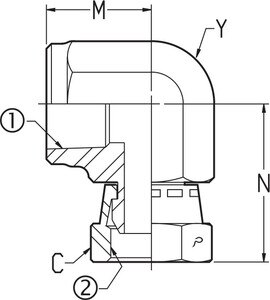

1 - Thread: 3/8 - 182 - Thread Type: Female NPSM Swivel2 - Size: -06 (3/8")2 - Thread: 3/8 - 18C - Nut Hex: 7/8M - Leg Length: 0.94N - Leg Length: 1.26
Y - Flats: 7/8Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
