1503-08-08-4

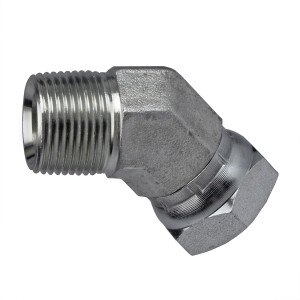

1/2" MP x 1/2" FPX 45° - NPSM Elbow - Steel
Details
Details
• MP x NPSM Elbow
• MP x FPX 45°
• 1st) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/2" Female NPSM Pipe Swivel (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140330
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
• MP x FPX 45°
• 1st) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/2" Female NPSM Pipe Swivel (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140330
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2049-8-8SEaton-Weatherhead Ref: 9355x8x8
Parker Ref: 3107-8-8SAE Ref: 140330
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° Elbow1 - Thread Type: Male Pipe1 - Size: -08 (1/2")

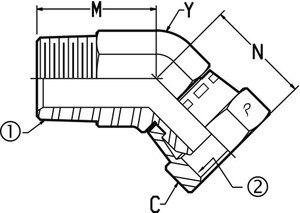

1 - Thread: 1/2 - 142 - Thread Type: Female NPSM Swivel2 - Size: -08 (1/2")2 - Thread: 1/2 - 14C - Nut Hex: 1"M - Leg Length: 1.17N - Leg Length: 1.14
Y - Flats: 7/8Working PSI: 3,500Burst PSI: 14,000Working BAR: 241Burst BAR: 965
