1601-06-06-06-4

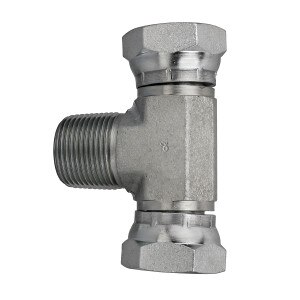

3/8" MP x 3/8" FPX x 3/8" FPX - NPSM Branch Tee - Steel
Details
Details
• MP x NPSM Branch Tee
• MP x FPX x FPX
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MP x FPX x FPX
• 1st) 3/8" Male NPTF Pipe (3/8 - 18 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2254-6-6SEaton-Weatherhead Ref: 9406x6x6x6
Parker Ref: 217T-6-6
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Male Pipe1 - Size: -06 (3/8")1 - Thread: 3/8 - 18

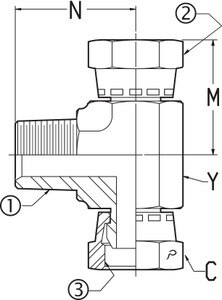

2 - Thread Type: Female NPSM Swivel2 - Size: -06 (3/8")2 - Thread: 3/8 - 183 - Thread Type: Female NPSM Swivel3 - Size: -06 (3/8")3 - Thread: 3/8 - 18C - Nut Hex: 7/8M - Leg Length: 1.19
N - Leg Length: 1.25Y - Flats: 3/4Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
