1602-08-06-06-4

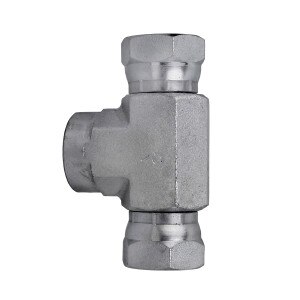

1/2" FP x 3/8" FPX x 3/8" FPX - NPSM Run Tee - Steel
Details
Details
• FP x NPSM Branch Tee
• FP x FPX x FPX
• 1st) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
• FP x FPX x FPX
• 1st) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 2nd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• 3rd) 3/8" Female NPSM Pipe Swivel (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 3,500 PSI (4:1 Burst)
• Burst Pressure 14,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2253-6-SEaton-Weatherhead Ref: 9456x6x6x8
Parker Ref: 227T-8-6
Specs

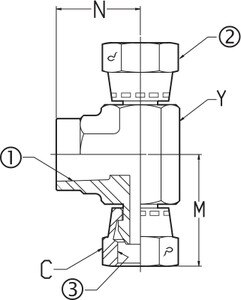

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Female Pipe1 - Size: -08 (1/2")1 - Thread: 1/2 - 14
2 - Thread Type: Female NPSM Swivel2 - Size: -06 (3/8")2 - Thread: 3/8 - 183 - Thread Type: Female NPSM Swivel3 - Size: -06 (3/8")3 - Thread: 3/8 - 18C - Nut Hex: 7/8M - Leg Length: 1.45
N - Leg Length: 1.23Y - Flats: 1 1/16Working PSI: 3,500Burst PSI: 14,000Working BAR: 241Burst BAR: 965
