1603-04-04-04-4

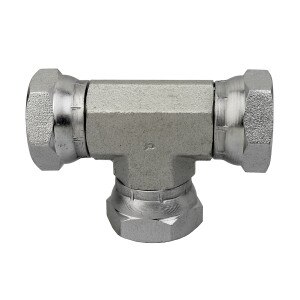

1/4" FPX x 1/4" FPX x 1/4" FPX - NPSM Tee - Steel
Details
Details
• NPSM Tee
• FPX x FPX x FPX
• 1st) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• 2nd) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• 3rd) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• FPX x FPX x FPX
• 1st) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• 2nd) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• 3rd) 1/4" Female NPSM Pipe Swivel (1/4 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2255-4-4SEaton-Weatherhead Ref: 9705x4x4x4
Parker Ref: 077T-4
Specs

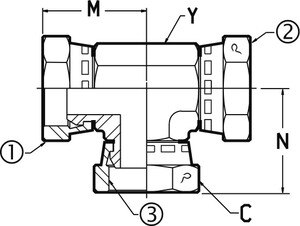

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Female NPSM Swivel1 - Size: -04 (1/4")1 - Thread: 1/4 - 18
2 - Thread Type: Female NPSM Swivel2 - Size: -04 (1/4")2 - Thread: 1/4 - 183 - Thread Type: Female NPSM Swivel3 - Size: -04 (1/4")3 - Thread: 1/4 - 18C - Nut Hex: 11/16M - Leg Length: 1.09
N - Leg Length: 1.09Y - Flats: 9/16Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
