1800-20-20-4

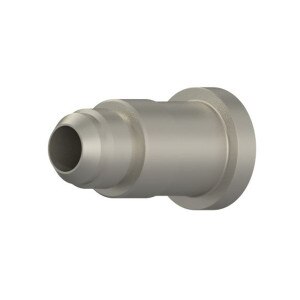

MJ Split Flange - Code 62 - Steel
Details
Details
• Code 62 - JIC Split Flange Adapter
• MJ x FH62
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Code 62 Flange Head (2-1/8" Dia.)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 62SF-KIT-20
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MJ x FH62
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Code 62 Flange Head (2-1/8" Dia.)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE (J518) Flange Specifications
• Uses Split Flange Kit # 62SF-KIT-20
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
