205-08-08-04

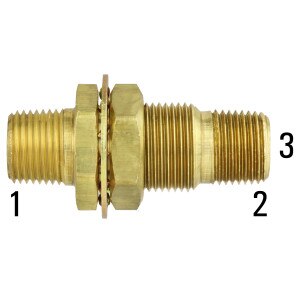

1/2" MP x 1/2" MP x 1/4" FP TAP - Bulkhead Frame Coupling - Brass
Details
Details
• Bulkhead Frame Coupling
• MP x MP 90°
• 1st) 1/2" Male Pipe NPTF (1/2 - 14 Thread)
• 2nd) 1/2" Male Pipe NPTF (1/2 - 14 Thread)
• 3rd) 1/4" Female Pipe NPTF TAP (1/4 - 18 Thread)
• Bulkhead Thread: 1 1/8 - 14 UNS Thread
• Solid Machined Brass
• Includes Steel Bulkhead "Jam" Nut and Star Washer
• PCC World-Class Quality Process
• Working Pressure: 1,000 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• MP x MP 90°
• 1st) 1/2" Male Pipe NPTF (1/2 - 14 Thread)
• 2nd) 1/2" Male Pipe NPTF (1/2 - 14 Thread)
• 3rd) 1/4" Female Pipe NPTF TAP (1/4 - 18 Thread)
• Bulkhead Thread: 1 1/8 - 14 UNS Thread
• Solid Machined Brass
• Includes Steel Bulkhead "Jam" Nut and Star Washer
• PCC World-Class Quality Process
• Working Pressure: 1,000 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 1342 / 1343
Specs
Fluid Product: ConnectionProduct Type: Bulkhead Frame CouplingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: Straight
1 - Thread Type: Male Pipe1 - Size: -08 (1/2")1 - Thread: 1/2 - 142 - Thread Type: Male Pipe2 - Size: -08 (1/2")
2 - Thread: 1/2-14Working PSI: 1,000Burst PSI: 4,000Working BAR: 69Burst BAR: 276
