2404LL-04-02

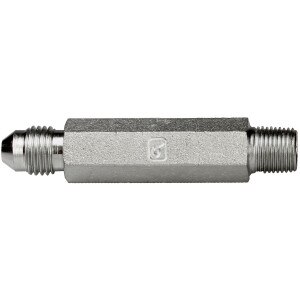

1/4" MJ x 1/8" MP - Male Connector Double Long - Steel
Details
Details
• Male Connector DOUBLE LONG
• MJ x MP DOUBLE LONG
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # Specifications - DOUBLE LONG Length NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MJ x MP DOUBLE LONG
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # Specifications - DOUBLE LONG Length NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 202114-2-4SEaton-Weatherhead Ref: C5205x4LL
Parker Ref: 4 FFFTX-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/4"
1 - Thread Type: Male JIC1 - Size: -04 (1/4")1 - Thread: 7/16 - 202 - Thread Type: Male Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27
C - Hex: 1/2L - Length: 2.56Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
