2501LL-08-08-4

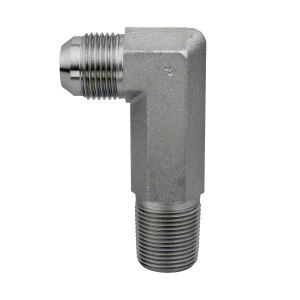

1/2" MJ x 1/2" MP 90° - Male Elbow Double Long - Steel
Details
Details
• Male Elbow DOUBLE LONG
• MJ x MP 90° DOUBLE LONG
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070502 - DOUBLE LONG Length NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x MP 90° DOUBLE LONG
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070502 - DOUBLE LONG Length NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 202413-8-8SEaton-Weatherhead Ref: C5435x8x8
Parker Ref: 8-8 CCCTX-SSAE Ref: 071602
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1/2"1 - Thread Type: Male JIC

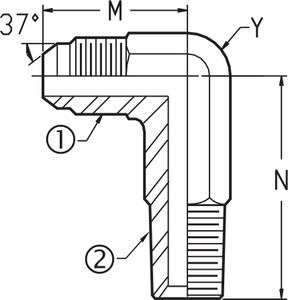

1 - Size: 3 in / 4 ul1 - Thread: 3/4-16 UNF2 - Thread Type: Male Pipe2 - Size: 1/22 - Thread: 1/2-14M - Leg Length: 1.33 inN - Leg Length: 2.87 in
Y - Flats: 7/8Y - Wrench Flats: 7 in / 8 ulWorking PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
