2503-06-08-4

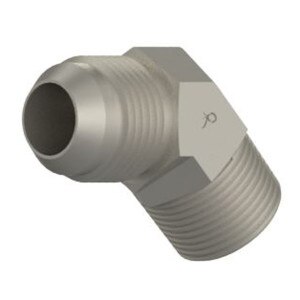

3/8" MJ x 1/2" MP 45° - Male Elbow - Steel
Details
Details
• Male Elbow
• MJ x MP 45°
• 1st) 3/8" Male 37° JIC Flare (9/16 - 18 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070302
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x MP 45°
• 1st) 3/8" Male 37° JIC Flare (9/16 - 18 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070302
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2023-8-6SEaton-Weatherhead Ref: C5355x6x8
Parker Ref: 6-8 VTX-SSAE Ref: 070302
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° ElbowTube O.D.: 3/8"1 - Thread Type: Male JIC

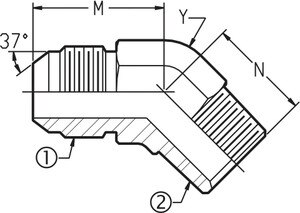

1 - Size: -06 (3/8")1 - Thread: 9/16 - 182 - Thread Type: Male Pipe2 - Size: -08 (1/2")2 - Thread: 1/2 - 14M - Leg Length: 0.88N - Leg Length: 1.17
Y - Flats: 7/8Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
