2601-20-20-20-4

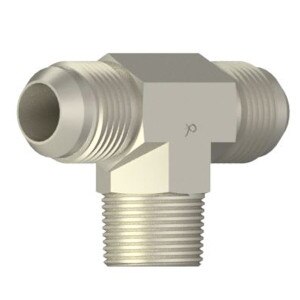

1-1/4" MJ x 1-1/4" MJ x 1-1/4" MP - Male Branch Tee - Steel
Details
Details
• Male Branch Tee
• MJ x MJ x MP
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 3rd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070425
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
• MJ x MJ x MP
• 1st) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 2nd) 1-1/4" Male 37° JIC Flare (1 5/8 - 12 Thread)
• 3rd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070425
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2030-20-20SEaton-Weatherhead Ref: C5605x20
Parker Ref: 20 STX-SSAE Ref: 070425
Specs

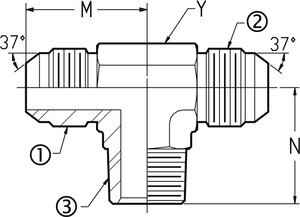

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1 1/4"1 - Thread Type: Male JIC1 - Size: -20 (1 1/4")
1 - Thread: 1 5/8 - 122 - Thread Type: Male JIC2 - Size: -20 (1 1/4")2 - Thread: 1 5/8 - 123 - Thread Type: Male Pipe3 - Size: -20 (1 1/4")3 - Thread: 1 1/4 - 11 1/2M - Leg Length: 2.06
N - Leg Length: 2.38Y - Flats: 1 5/8Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 689
