2602-08-08-06-4

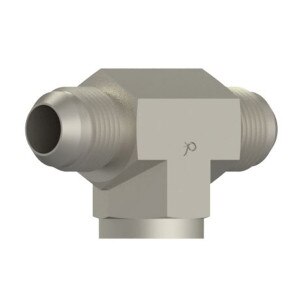

1/2" MJ x 1/2" MJ x 3/8" FP - Female Branch Tee - Steel
Details
Details
• Female Branch Tee
• MJ x MJ x FP
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 3rd) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 0707427
• Working Pressure 4,500 PSI (4:1 Burst)
• Burst Pressure 18,000 PSI
• MJ x MJ x FP
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 3rd) 3/8" Female NPTF Pipe (3/8 - 18 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 0707427
• Working Pressure 4,500 PSI (4:1 Burst)
• Burst Pressure 18,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2031-6-8SEaton-Weatherhead Ref: C5655x8
Parker Ref: 8 OTX-SSAE Ref: 070427
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/2"1 - Thread Type: Male JIC1 - Size: -08 (1/2")

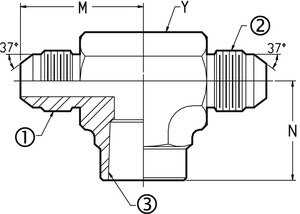

1 - Thread: 3/4 - 162 - Thread Type: Male JIC2 - Size: -08 (1/2")2 - Thread: 3/4 - 163 - Thread Type: Female Pipe3 - Size: -04 (1/4")3 - Thread: 1/4 - 18M - Leg Length: 1.42
N - Leg Length: 1.02Y - Flats: 7/8Working PSI: 4,500Burst PSI: 18,000Working BAR: 310Burst BAR: 1,241
