2605-04-04-04-4

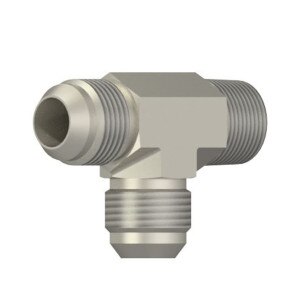

1/4" MJ x 1/4" MP x 1/4" MJ - Male Run Tee - Steel
Details
Details
• Male Run Tee
• MJ x MP x MJ
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 3rd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070424
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MJ x MP x MJ
• 1st) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• 2nd) 1/4" Male NPTF Pipe (1/4 - 18 Thread)
• 3rd) 1/4" Male 37° JIC Flare (7/16 - 20 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070424
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2028-4-4SEaton-Weatherhead Ref: C5755x4x4x4
Parker Ref: 4-4 RTX-SSAE Ref: 070424
Specs

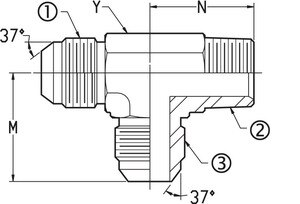

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/4"1 - Thread Type: Male JIC1 - Size: -04 (1/4")
1 - Thread: 7/16 - 202 - Thread Type: Male Pipe2 - Size: -04 (1/4")2 - Thread: 1/4 - 183 - Thread Type: Male JIC3 - Size: -04 (1/4")3 - Thread: 7/16 - 20M - Leg Length: 1.05
N - Leg Length: 1.09Y - Flats: 9/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
