2606-08-08-08-4

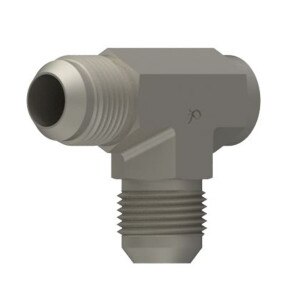

1/2" MJ x 1/2" FP x 1/2" MJ - Female Run Tee - Steel
Details
Details
• Female Run Tee
• MJ x FP x MJ
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 3rd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070426
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MJ x FP x MJ
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 1/2" Female NPTF Pipe (1/2 - 14 Thread)
• 3rd) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070426
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2029-8-8SEaton-Weatherhead Ref: C5805x8
Parker Ref: 8-8 MTX-SSAE Ref: 070426
Specs

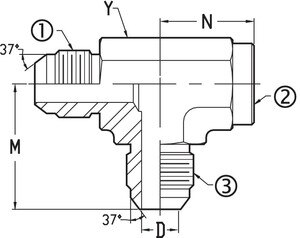

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1/2"1 - Thread Type: Male JIC1 - Size: -08 (1/2")
1 - Thread: 3/4 - 162 - Thread Type: Female Pipe2 - Size: -08 (1/2")2 - Thread: 1/2 - 143 - Thread Type: Male JIC3 - Size: -08 (1/2")3 - Thread: 3/4 - 16M - Leg Length: 1.52
N - Leg Length: 1.23Y - Flats: 1 1/16Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
