2704-16-16-16-4
1" MJ x 1" BH MJ x 1" MJ - Bulkhead Run Tee - Steel
Details
Details
• Bulkhead Run Tee
• MJ x BH MJ x MJ
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Bulkhead Male 37° JIC Flare (1 5/16 - 12 Thread)
• 3rd) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070958
• Uses Bulkhead Locknut # 306-16
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
• MJ x BH MJ x MJ
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Bulkhead Male 37° JIC Flare (1 5/16 - 12 Thread)
• 3rd) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070958
• Uses Bulkhead Locknut # 306-16
• Working Pressure 4,000 PSI (4:1 Burst)
• Burst Pressure 16,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2003008-16-16SEaton-Weatherhead Ref: C5726x16
Parker Ref: 16 WJJTX-SSAE Ref: 070958
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1"1 - Thread Type: Male JIC1 - Size: -16 (1")1 - Thread: 1 5/16 - 12

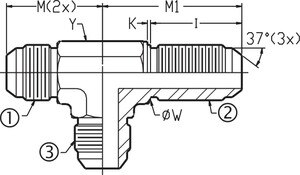

2 - Thread Type: Bulkhead Male JIC2 - Size: -16 (1")2 - Thread: 1 5/16 - 123 - Thread Type: Male JIC3 - Size: -16 (1")3 - Thread: 1 5/16 - 12I - Assembled: 1.56K - Thickness: 0.13M - Leg Length: 1.94
M1 - Leg Length: 2.80W - Diameter: 1.31Y - Flats: 1 5/16Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
