2706-12-12

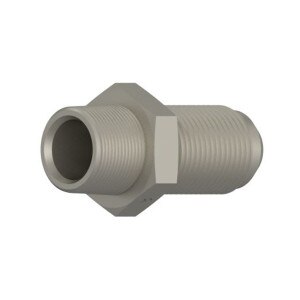

MP x BH MJ -Male Bulkhead Connector -Stl
Details
Details
• Male Bulkhead Connector
• MP x BH MJ
• 1st) 3/4" Male NPTF Pipe (3/4 - 14 Thread)
• 2nd) 3/4" Male Bulkhead 37° JIC Flare (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Uses Bulkhead Locknut # 306-12
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MP x BH MJ
• 1st) 3/4" Male NPTF Pipe (3/4 - 14 Thread)
• 2nd) 3/4" Male Bulkhead 37° JIC Flare (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Uses Bulkhead Locknut # 306-12
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
