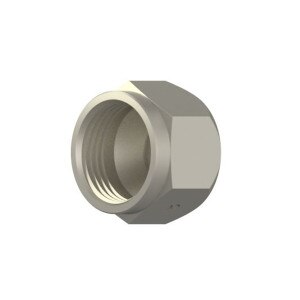

304C-32
2" FJ - Cap - Steel
Details
Details
• Female JIC Cap
• FJ
• 1st) 2" Female 37° JIC Flare (2 1/2 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070112
• Working Pressure 2,000 PSI (4:1 Burst)
• Burst Pressure 8,000 PSI
• FJ
• 1st) 2" Female 37° JIC Flare (2 1/2 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070112
• Working Pressure 2,000 PSI (4:1 Burst)
• Burst Pressure 8,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 210292-32SEaton-Weatherhead Ref: C5129x32
Parker Ref: 32 FNTX-SSAE Ref: 070112
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight

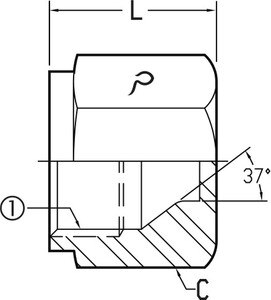

Tube O.D.: 2"1 - Thread Type: Female JIC1 - Size: -32 (2")1 - Thread: 2 1/2 - 12C - Hex: 2 7/8
L - Length: 1.44Working PSI: 2,000Burst PSI: 8,000Working BAR: 138Burst BAR: 552
