306-12

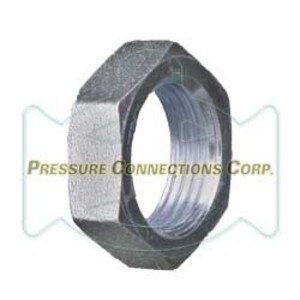

3/4" JIC - Bulkhead Locknut - Steel
Details
Details
• JIC Bulkhead Locknut
• FJ (Use with Bulkhead JIC - Size -12)
• 1st) 3/4" Female Bulkhead JIC (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070118
• FJ (Use with Bulkhead JIC - Size -12)
• 1st) 3/4" Female Bulkhead JIC (1 1/16 - 12 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070118
Crossover Part Numbers
Eaton-Aeroquip Ref: 210212-12SEaton-Weatherhead Ref: C5924x12
Parker Ref: 12 WLN-SSAE Ref: 070118
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: Steel
Orientation: StraightTube O.D.: 3/4"1 - Thread Type: Female Bulkhead1 - Size: -12 (3/4")
1 - Thread: 1 1/16 - 12C - Hex: 1 3/8T - Thickness: 0.41
