3550-04-04

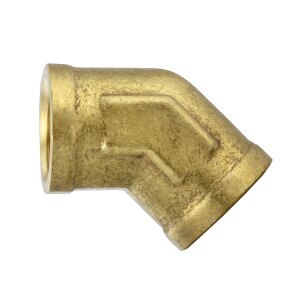

1/4" FP x 1/4" FP 45° - Female Pipe Elbow - Pipe Fitting - Brass - MAILBOX

Details

• Female Pipe Elbow
• FP x FP 45°
• 1st) 1/4" Female Pipe NPTF (1/4 - 18 Thread)
• 2nd) 1/4" Female Pipe NPTF (1/4 - 18 Thread)
• MAILBOX Style
• Performs to SAE J530 and J531 Standards - Dimensions May Vary
• PCC World-Class Quality Process

• Working Pressure: 1,000 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)

Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).

Crossover Part Numbers

Eaton-Weatherhead: 3350x4

Parker: 1201P-4-4

Specs

Fluid Product: ConnectionProduct Type: Pipe FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: 45° Elbow

1 - Thread Type: Female Pipe1 - Size: -04 (1/4")1 - Thread: 1/4 - 182 - Thread Type: Female Pipe2 - Size: -04 (1/4")

2 - Thread: 1/4 - 18Working PSI: 1,000Burst PSI: 4,000Working BAR: 69Burst BAR: 276
