3700N-06-06-06-4

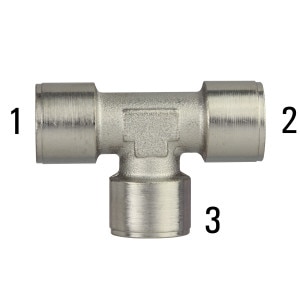

3/8" FP x 3/8" FP x 3/8" FP - Female Pipe Tee - FORGED NICKEL PLATED Brass
Details
Details
• Female Pipe Tee - NICKEL PLATED
• FP x FP x FP
• 1st) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• 2nd) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• 3rd) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• Nickel Plated FORGED Brass
• Performs to SAE J530 and J531 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 1,000 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• FP x FP x FP
• 1st) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• 2nd) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• 3rd) 3/8" Female Pipe NPTF (3/8 - 18 Thread)
• Nickel Plated FORGED Brass
• Performs to SAE J530 and J531 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 1,000 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 3700x6
Parker: 1203P-6 (Nickel)
Specs
Fluid Product: ConnectionProduct Type: Pipe FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: Tee1 - Thread Type: Female Pipe
1 - Size: -06 (3/8")1 - Thread: 3/8 - 182 - Thread Type: Female Pipe2 - Size: -06 (3/8")2 - Thread: 3/8 - 183 - Thread Type: Female Pipe
3 - Size: -06 (3/8")3 - Thread: 3/8 - 18Working PSI: 1,000Burst PSI: 4,000Working BAR: 69Burst BAR: 276
