41F-08

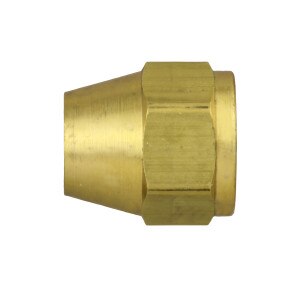

1/2" FS - Short Flare Nut - SAE 45° Flare - Brass
Details
Details
• SAE Short Flare Nut
• FS
• 1st) 1/2" Female SAE Flare (3/4 - 16 Thread)
• Solid Machined Brass
• Performs to SAE J512 and J513 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 750 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• FS
• 1st) 1/2" Female SAE Flare (3/4 - 16 Thread)
• Solid Machined Brass
• Performs to SAE J512 and J513 Standards - Dimensions May Vary
• PCC World-Class Quality Process
• Working Pressure: 750 PSI
• Temperature Range: –65° to +250° F (–54° to +121° C)
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Eaton-Weatherhead: 1110x8
Parker: 41FS-8
Specs
Fluid Product: ConnectionProduct Type: 45° Flare FittingsMedia: Hydraulic/PneumaticMaterial: BrassOrientation: Straight
Tube O.D.: 1/2"1 - Thread Type: Female SAE1 - Size: -08 (1/2")1 - Thread: 3/4 - 16Working PSI: 750
Burst PSI: 3,000Working BAR: 52Burst BAR: 207
