4404-20-16

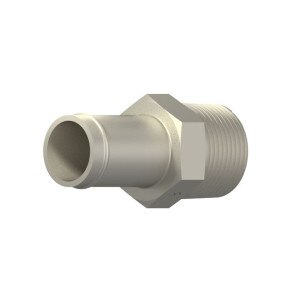

1-1/4" Hose Barb x 1" MP - Beaded Hose Barb - Steel
Details
Details
• Male Pipe x Beaded Hose Barb
• HS x MP
• 1st) 1-1/4" Beaded Hose Barb
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430160
• HS x MP
• 1st) 1-1/4" Beaded Hose Barb
• 2nd) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430160

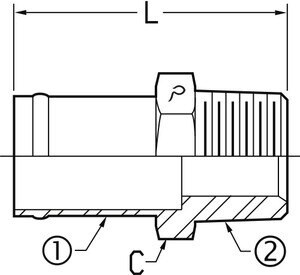

Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1-1/4"
1 - Thread Type: Beaded Hose Barb1 - Size: -20 (1-1/4")2 - Thread Type: Beaded Hose Barb x Male Pipe2 - Size: -16 (1")2 - Thread: 1 - 11 1/2A - Length: 2.90
W - Nut Hex: 1 1/2Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
