4601-24-20

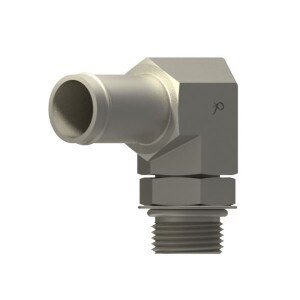

1-1/2" Hose Barb x 1-1/4" MB 90° - Beaded Hose Barb - Steel
Details
Details
• Male ORB x Beaded Hose Barb Elbow
• HS x MB 90°
• 1st) 1-1/2" Beaded Hose Barb
• 2nd) 1-1/4" Male O-Ring Boss (1 5/8 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430292
• HS x MB 90°
• 1st) 1-1/2" Beaded Hose Barb
• 2nd) 1-1/4" Male O-Ring Boss (1 5/8 - 12 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Ring
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE 430292
Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 1-1/2"1 - Thread Type: Beaded Hose Barb
1 - Size: -24 (1-1/2")2 - Thread Type: Male ORB Elbow 90°2 - Size: -20 (1-1/4")2 - Thread: 1 5/8 - 12A - Length: 2.50E - Drop Length: 2.25W - Nut Hex: 1 7/8
Y - Wrench Flats: 1 5/8Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
