5000-20-20

Sold as: Each
Ordered as: 5000-20-20
$13.05

Details

Details

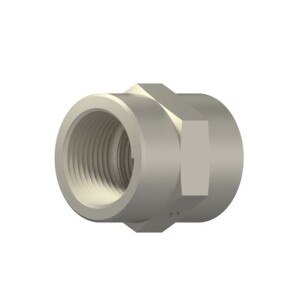

• Pipe Coupling
• FP x FP
• 1st) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• 2nd) 1-1/4" Female NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140138

• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI

Crossover Part Numbers

Eaton-Aeroquip Ref: 2096-20-20SEaton-Weatherhead Ref: C3309x20
Parker Ref: 1 1/4 GG-SSAE Ref: 140138

Specs

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Female Pipe

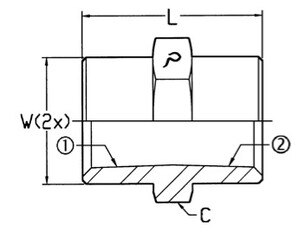

1 - Size: -20 (1 1/4")1 - Thread: 1 1/4 - 11 1/22 - Thread Type: Female Pipe2 - Size: -20 (1 1/4")2 - Thread: 1 1/4 - 11 1/2C - Hex: 2"
L - Length: 1.93W - Diameter: 2.00Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 689
