55-90202-12-12-12-AL

Sold as: Each
Ordered as: 55-90202-12-12-12-AL
$56.31
55-90202-12-12-12-al spec page

Crossover Part Numbers

Super Swivels Ref.: 9 SS 12 FP 75 X FP 75-Z-AL

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -12 (3/4")1 - Thread: 3/4 - 142 - Size: -12 (3/4")

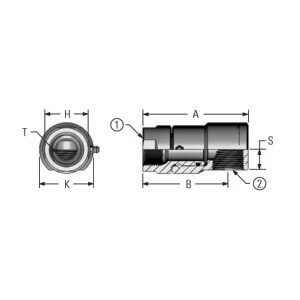

2 - Thread: 3/4 - 14A: 3.18B: 2.52H: 1.50K: 1.71S: 0.66T: 0.611-Stem Thread Type: Female Pipe
2-Body Thread Type: Female Pipe3-Flow Size: 3/4Working PSI: 4,500Burst PSI: 18,000Working BAR: 310Burst BAR: 1,241
