55-90202-16-16-16

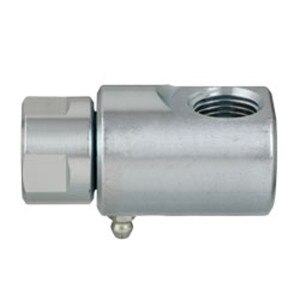

55 Series - 90° - FP Stem x FP Body


$69.93
Sold as: Each
Ordered as: 55-90202-16-16-16

Crossover Part Numbers

Super Swivels Ref.: 9 SS 16 FP 100 X FP 100-Z-V

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -16 (1")1 - Thread: 1 - 11 1/22 - Size: -16 (1")

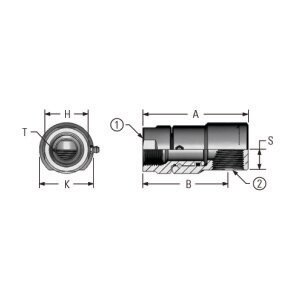

2 - Thread: 1 - 11 1/2A: 4.00B: 3.19H: 1.63K: 2.16S: 0.82T: 0.831-Stem Thread Type: Female Pipe
2-Body Thread Type: Female Pipe3-Flow Size: 1"Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
