55-90302-08-06-08

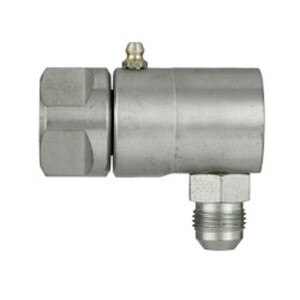

1/2" MJ Stem x 1/2" FP Body x 1/2" Flow - 55 Series - 90° - Steel

$136.45
Sold as: Each
Ordered as: 55-90302-08-06-08
view spec page

Crossover Part Numbers

Super Swivels Ref.: 9 SS 8 MJ 8 X FP 38-Z-V

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Size: -06 (3/8")

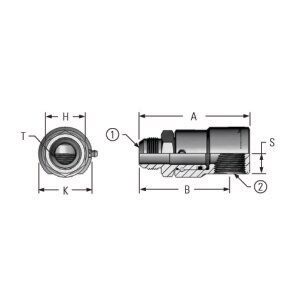

2 - Thread: 3/8 - 18A: 3.07B: 2.52H: 1.00K: 1.50S: 0.65T: 0.391-Stem Thread Type: Male 37° JIC Flare
2-Body Thread Type: Female Pipe3-Flow Size: 1/2Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
