55-90307-04-04-04

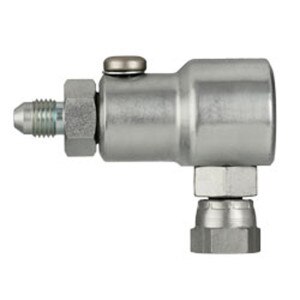

1/4" MJ Stem x 1/4" FPX Body x 1/4" Flow - 55 Series - 90° - Steel

$141.58
Sold as: Each
Ordered as: 55-90307-04-04-04
view spec page

Crossover Part Numbers

Super Swivels Ref.: 9 SS 4 MJ 4 X PS 25-Z-V

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -04 (1/4")1 - Thread: 7/16 - 202 - Size: -04 (1/4")

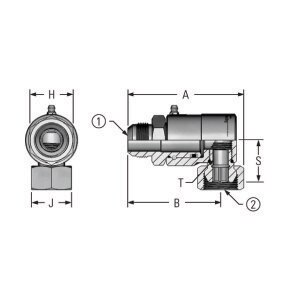

2 - Thread: 1/4 - 18A: 2.87B: 2.36H: 0.75J: 0.69S: 1.33T: 0.171-Stem Thread Type: Male 37° JIC Flare
2-Body Thread Type: Female Pipe Swivel3-Flow Size: 1/4Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
