55-90503-16-16-16

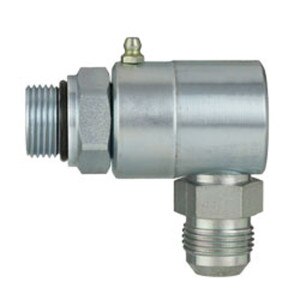

1" MB Stem x 1" MJ Body x 1" Flow - 55 Series - 90° - Steel

$240.12
Sold as: Each
Ordered as: 55-90503-16-16-16
view spec page

Crossover Part Numbers

Super Swivels Ref.: 9 SS 16 MO 16 X MJ 16-Z-V

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -16 (1")1 - Thread: 1 5/16 - 12

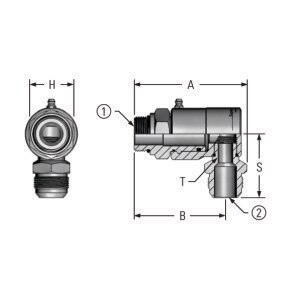

2 - Size: -16 (1")2 - Thread: 1 5/16 - 12A: 4.20B: 3.41H: 1.63S: 2.38T: 0.55
1-Stem Thread Type: Male O-Ring Boss2-Body Thread Type: Male 37° JIC Flare3-Flow Size: 1"Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
