55-90507-16-16-16

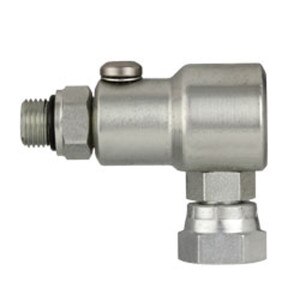

1" MB Stem x 1" FPX Body x 1" Flow - 55 Series - 90° - Steel

$247.62
Sold as: Each
Ordered as: 55-90507-16-16-16
view spec page

Crossover Part Numbers

Super Swivels Ref.: 9 SS 16 MO 16 X PS 100-Z-V

Specs

Fluid Product: ConnectionProduct Type: Live Hydraulic SwivelsMedia: HydraulicMaterial: SteelOrientation: 90°1 - Size: -16 (1")1 - Thread: 1 5/16 - 122 - Size: -16 (1")

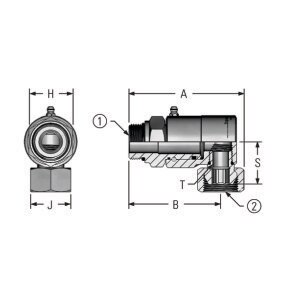

2 - Thread: 1 - 11 1/2A: 4.28B: 3.41H: 1.63J: 1.50S: 1.96T: 0.591-Stem Thread Type: Male O-Ring Boss
2-Body Thread Type: Female Pipe Swivel3-Flow Size: 1"Working PSI: 4,000Burst PSI: 16,000Working BAR: 276Burst BAR: 1,103
