5501-02-02-4

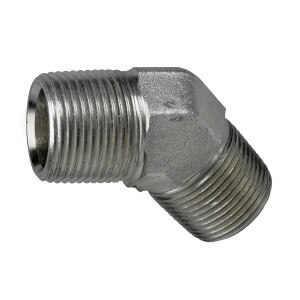

1/8" MP x 1/8" MP 45° - Male Pipe Elbow - Steel
Details
Details
• Male Pipe Elbow
• MP x MP 45°
• 1st) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MP x MP 45°
• 1st) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2247-2-2S
SAE Ref: 140337
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 45° Elbow1 - Thread Type: Male Pipe

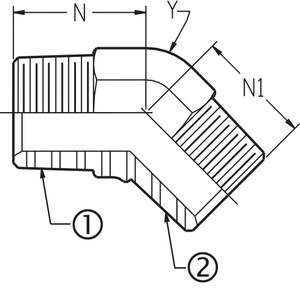

1 - Size: -02 (1/8")1 - Thread: 1/8 - 272 - Thread Type: Male Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27N - Leg Length: 0.64
N1 - Leg Length: 0.64Y - Flats: 7/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
