5502-32-32-4

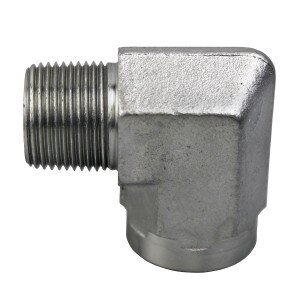

2" MP x 2" FP 90° - Street Elbow - Steel
Details
Details
• Street Elbow
• MP x FP 90°
• 1st) 2" Male NPTF Pipe (2 - 11 1/2 Thread)
• 2nd) 2" Male NPTF Pipe (2 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140239
• Working Pressure 1,200 PSI (4:1 Burst)
• Burst Pressure 4,800 PSI
• MP x FP 90°
• 1st) 2" Male NPTF Pipe (2 - 11 1/2 Thread)
• 2nd) 2" Male NPTF Pipe (2 - 11 1/2 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140239
• Working Pressure 1,200 PSI (4:1 Burst)
• Burst Pressure 4,800 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2089-32-32SEaton-Weatherhead Ref: C3409x32
Parker Ref: 2 CD-SSAE Ref: 140239
Specs

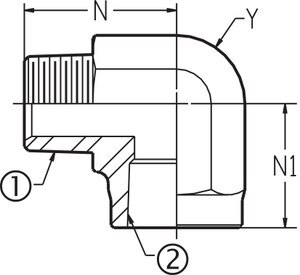

Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° Elbow1 - Thread Type: Male Pipe
1 - Size: -32 (2")1 - Thread: 2 - 11 1/22 - Thread Type: Female Pipe2 - Size: -32 (2")2 - Thread: 2 - 11 1/2N - Leg Length: 3.00
N1 - Leg Length: 2.39Y - Flats: 2 13/16Working PSI: 1,200Burst PSI: 4,800Working BAR: 83Burst BAR: 331
