5605-12-12-12-4

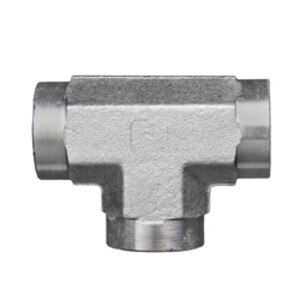

FP x FP x FP - Female Pipe Tee - Steel
Details
Details
• Female Pipe Tee
• FP x FP x FP
• 1st) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• 2nd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• 3rd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140438
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• FP x FP x FP
• 1st) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• 2nd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• 3rd) 3/4" Female NPTF Pipe (3/4 - 14 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140438
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2090-12-12SEaton-Weatherhead Ref: C3709x12
Parker Ref: 3/4 MMO-SSAE Ref: 140438
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Tee1 - Thread Type: Female Pipe1 - Size: -12 (3/4")
1 - Thread: 3/4 - 142 - Thread Type: Female Pipe2 - Size: -12 (3/4")2 - Thread: 3/4 - 143 - Thread Type: Female Pipe3 - Size: -12 (3/4")3 - Thread: 3/4 - 14

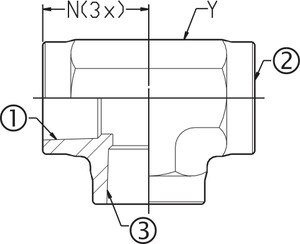

N - Leg Length: 1.36Y - Flats: 1 5/16Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
